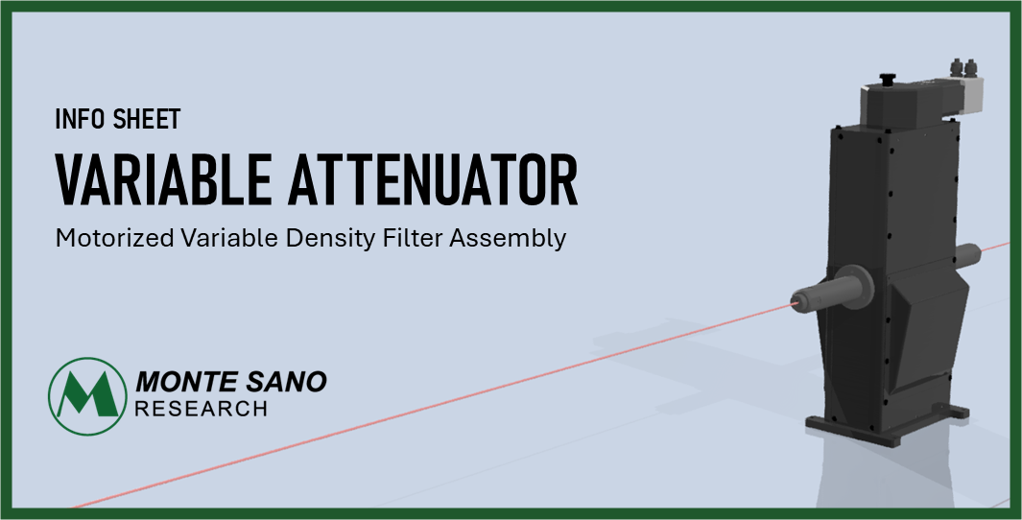

The Variable Attenuator developed by MSRC is an inline, motorized optical attenuation system designed to provide continuous, high-dynamic-range laser power control for 1064 nm laser applications. The assembly integrates beam expansion optics, logarithmically coated neutral density filters, and a brushless motor drive to achieve precise and repeatable attenuation while maintaining beam quality.
The attenuator contains four motorized Inconel neutral density filters, allowing continuous and precise adjustment of optical density from 2 to 10.4 OD at 1064 nm.
LOGARITHMIC COATED FILTERS
PRODUCT HIGHLIGHTS
- Motorized variable attenuator for continuous optical density adjustment.
- Continuous OD variation from 2 to 10.4 OD at 1064nm.
- Brushless motor drive for precise and repeatable attenuation control.
- Integrated beam-expanding optics for wide range of input intensity and fluence levels.
- Inline optical configuration for easy system integration.
INTEGRATED BEAM EXPANSION AND COLLIMATION
Upstream and downstream beam-expanding optics reduce power density on the filters, enabling operation over a wide range of input intensity and fluence levels.
